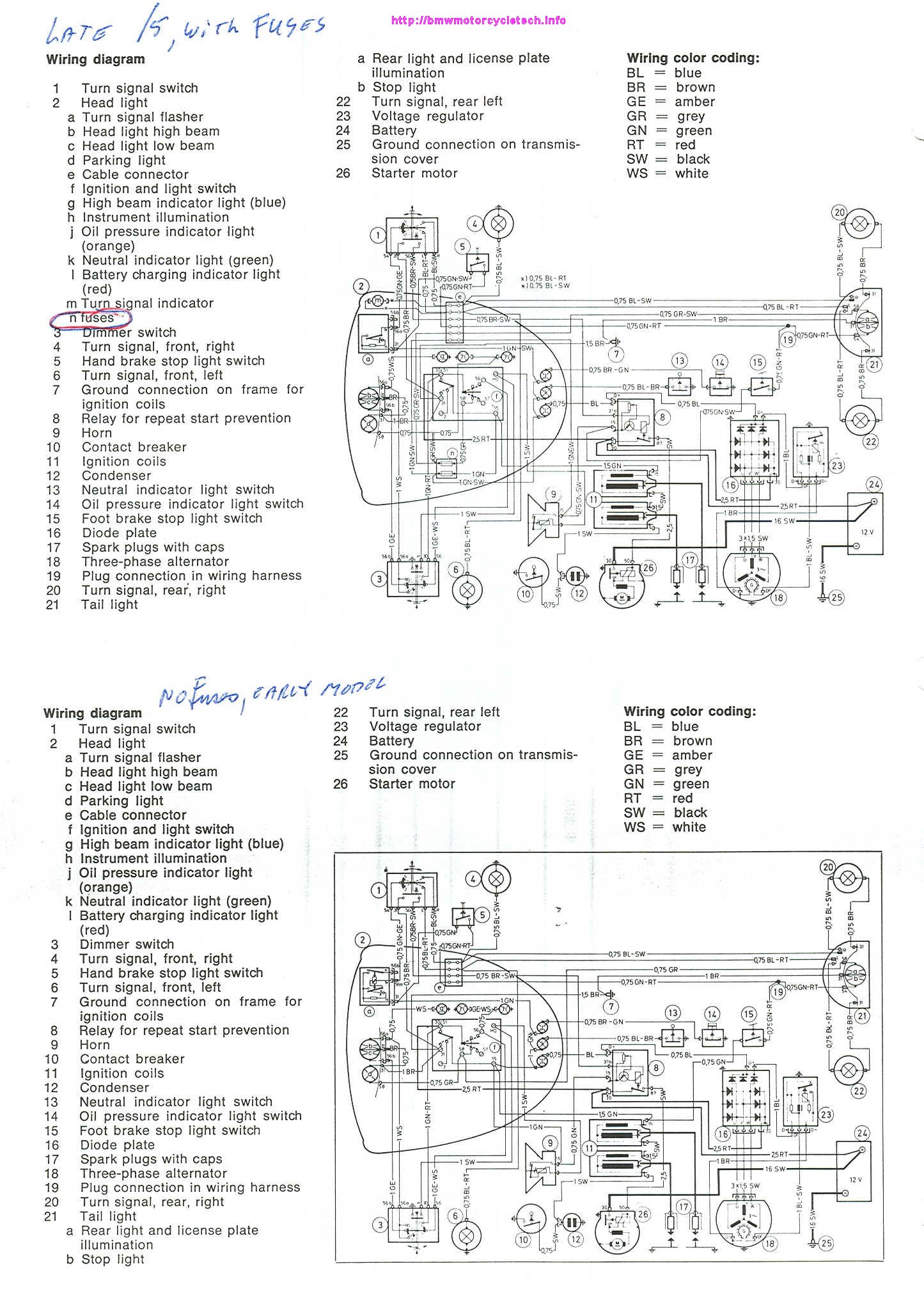

Schematic wiring for the Slash 5 (/5) (Both the fused and earlier UNfused models)
SchemSlash5.htm-38G
Warning! If you have an UNfused /5, be sure to add fuses!
